Home > Category > Product Categories > Refrigerator delivery truck  > Japanese Refrigerator truck supplier in China,3 ton Refrigerator truck,ISUZU Refrigerator truck
Japanese Refrigerator truck supplier in China,3 ton Refrigerator truck,ISUZU  Refrigerator truckJapanese Refrigerator truck supplier in China,3 ton Refrigerator truck,ISUZU  Refrigerator truckJapanese Refrigerator truck supplier in China,3 ton Refrigerator truck,ISUZU  Refrigerator truckJapanese Refrigerator truck supplier in China,3 ton Refrigerator truck,ISUZU  Refrigerator truckJapanese Refrigerator truck supplier in China,3 ton Refrigerator truck,ISUZU  Refrigerator truckJapanese Refrigerator truck supplier in China,3 ton Refrigerator truck,ISUZU  Refrigerator truckJapanese Refrigerator truck supplier in China,3 ton Refrigerator truck,ISUZU  Refrigerator truck

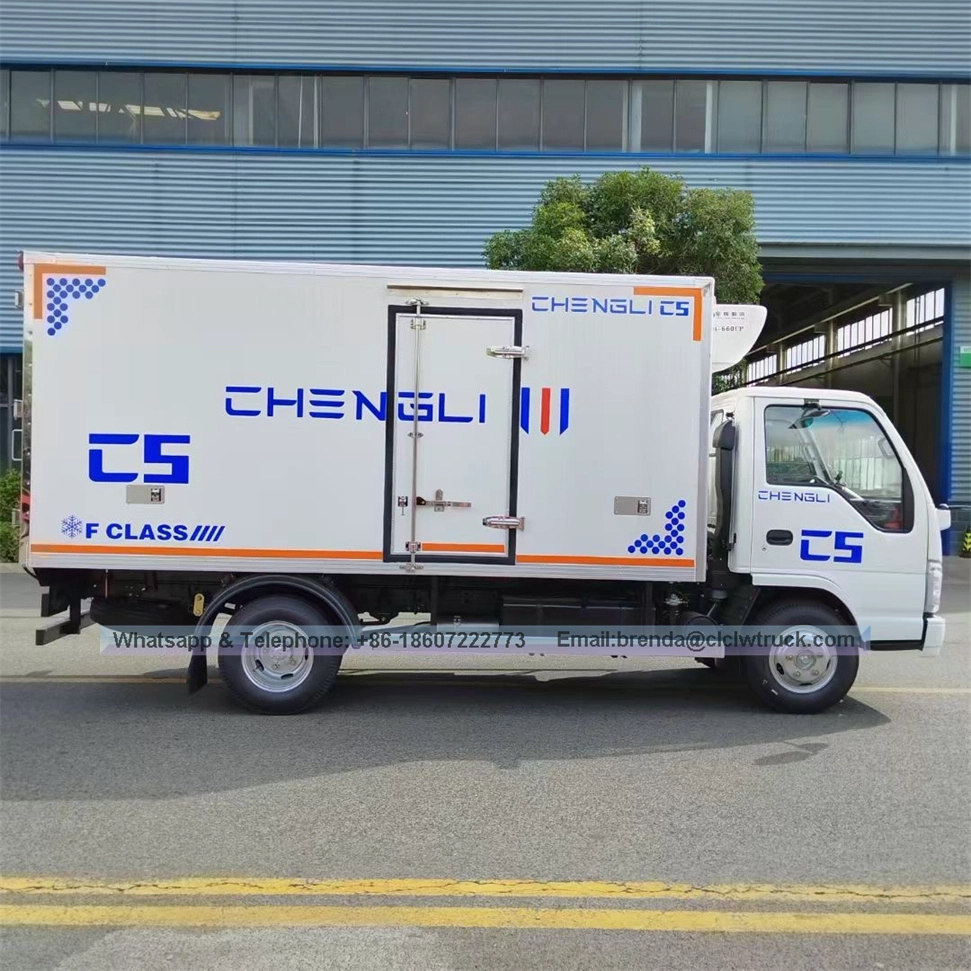

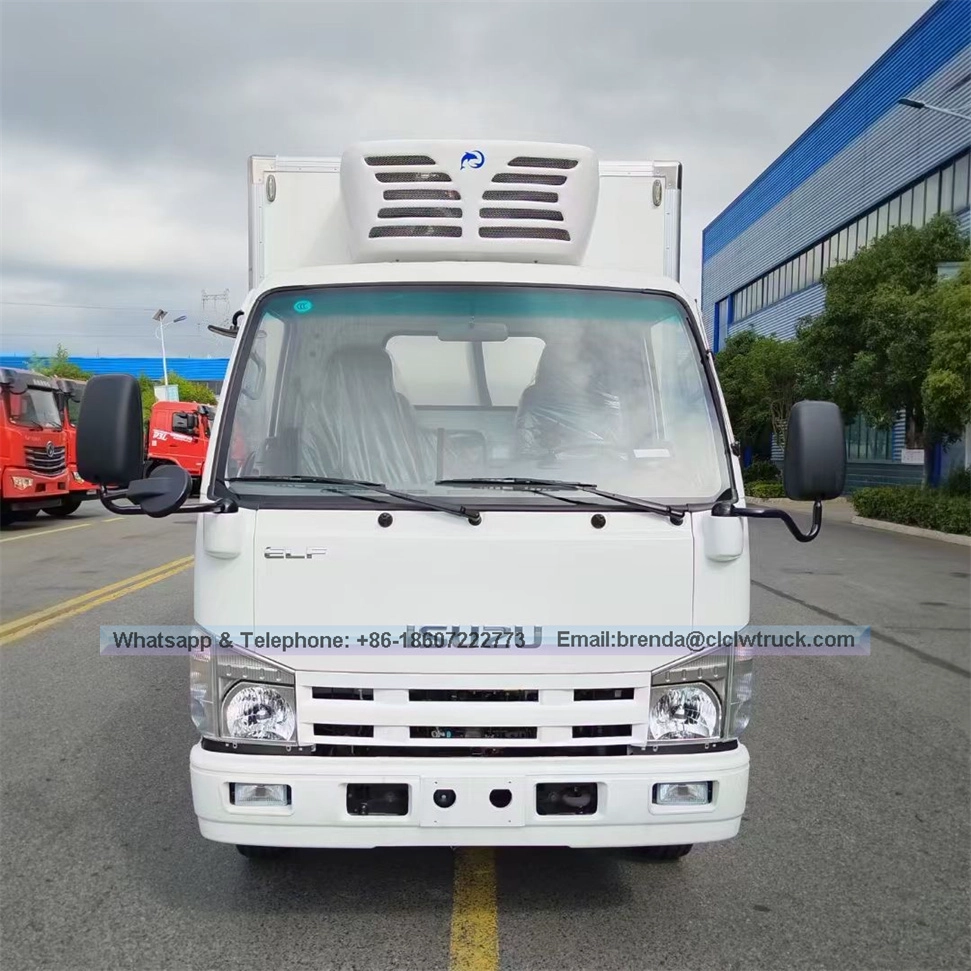

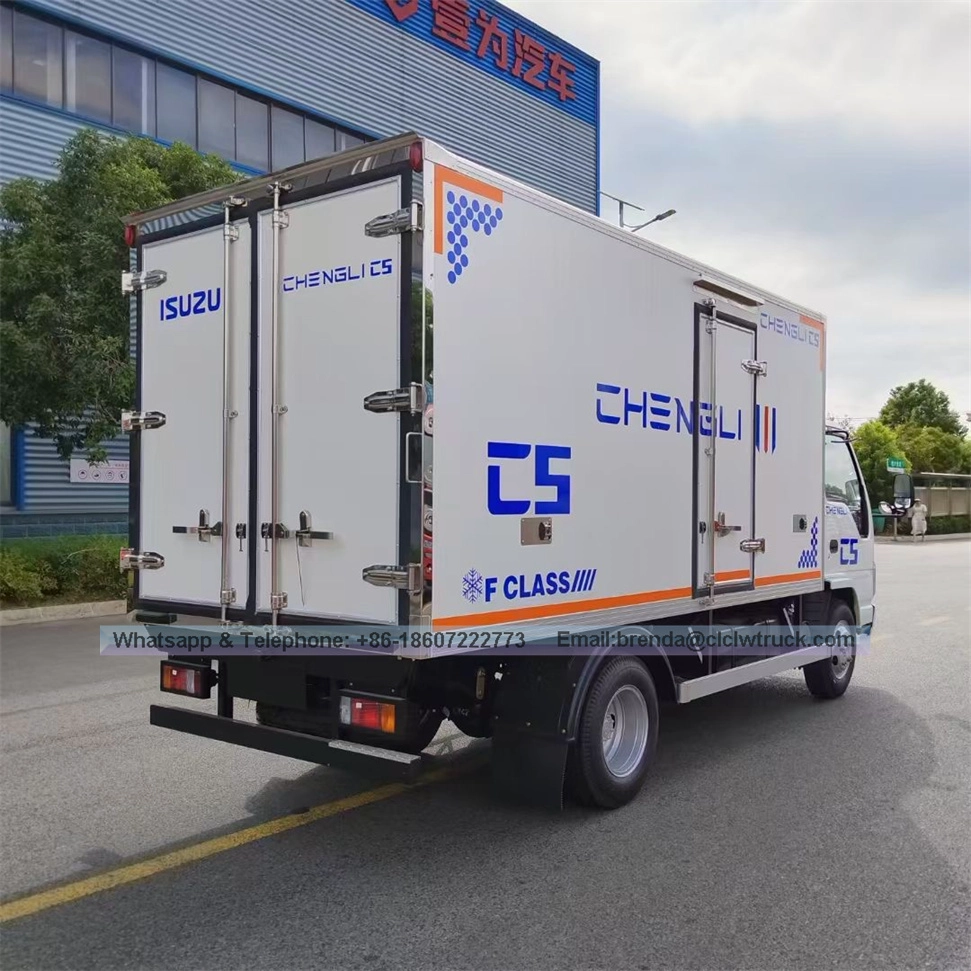

Japanese Refrigerator truck supplier in China,3 ton Refrigerator truck,ISUZU Refrigerator truck

  • Refrigerator Truck is a van truck designed to carry perishable freight at specific temperatures,such as fruit,vegetable,milk,medicine,meat and so on.The material used is polyurethane and fiber glass for the van.It is useful and economical transportation truck in nowadays. Our company has different size of refrigerated van equipped in different chassis. Please consult us for more information.1.Chassis model:QL1070A1HAY
  • 2.Overall dimension:6200x2000x2900mm
  • 3.Gross weight:6600Kg
  • 4.Payload:3570Kg
  • 5.Tyre specification:7.00R16 14PR
  • 6.Van body size:4350x1800x1800mm
  • 7.Max speed:105Km/h
  • 8.Lowest refrigeration temperature:-5 to -18 Centigrade

Main specification

Product model

JDF5060XLCQ4 Refrigerator Truck

Gross weight(Kg)

6600

Drive type

4x2

Payload(Kg)

3570

Overall dimension(mm)

6200x2000x2900

Curb weight(Kg)

2900

Cab seats

2

Approach/departure angle(°)

24/14

Front/rear hang(mm)

1015/1825

Axle No.

2

Wheelbase(mm)

3360

Axle load(Kg)

2330/4270

Max speed(Km/h)

105

Chassis specification

Chassis model

QL1070BUHAY

Manufacturer

Qingling Auto Co.,Ltd

Brand name

ISUZU

Dimension(mm)

5900x1880x2160

Tyre specification

7.00R16 14PR

Tyre No.

6

Steel spring number

8/6+5

Front track base(mm)

1504

Fuel type

Diesel

Rear track base(mm)

1425

Emission standard

Euro 6

Transmission

5 forward gear,1 reverse gear

Cab

Single row, power steering,air-condition, USB and a radio

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

4KH1CN6LB

Qingling ISUZU Engine Co.,Ltd

2999

88(120hp)

Performance

Van body size(mm)

4350x1800x1800

Load capacity(TON)

3

Lowest refrigeration temperature(℃)

-5 to -18 Centigrade

Feature and Application

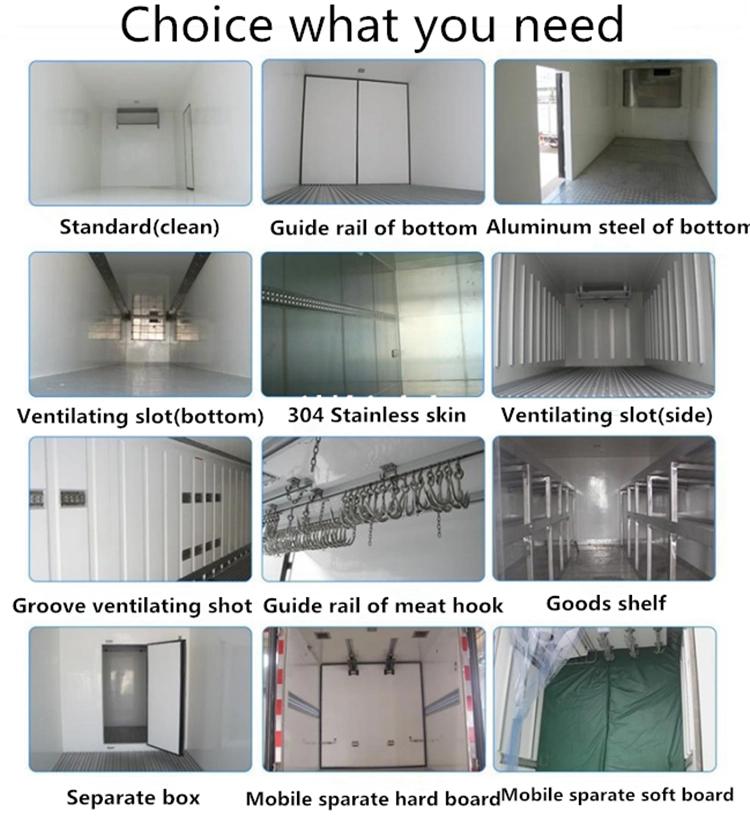

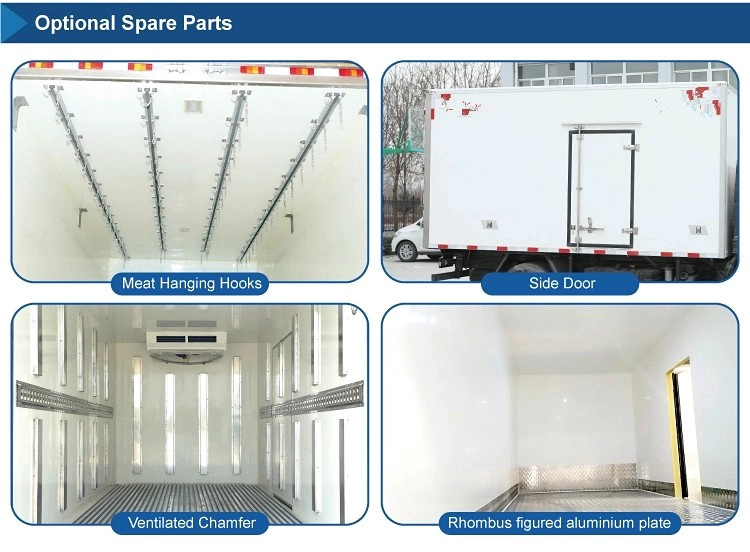

The refrigerator truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, Polyurethane insulation van, refrigeration unit and temperature recorder. It is commonly used to transport the frozen food, dairy products, vegetable and fruit and vaccine medicine etc. For the special requirements of trucks,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots etc. parts can be chosen and installed.

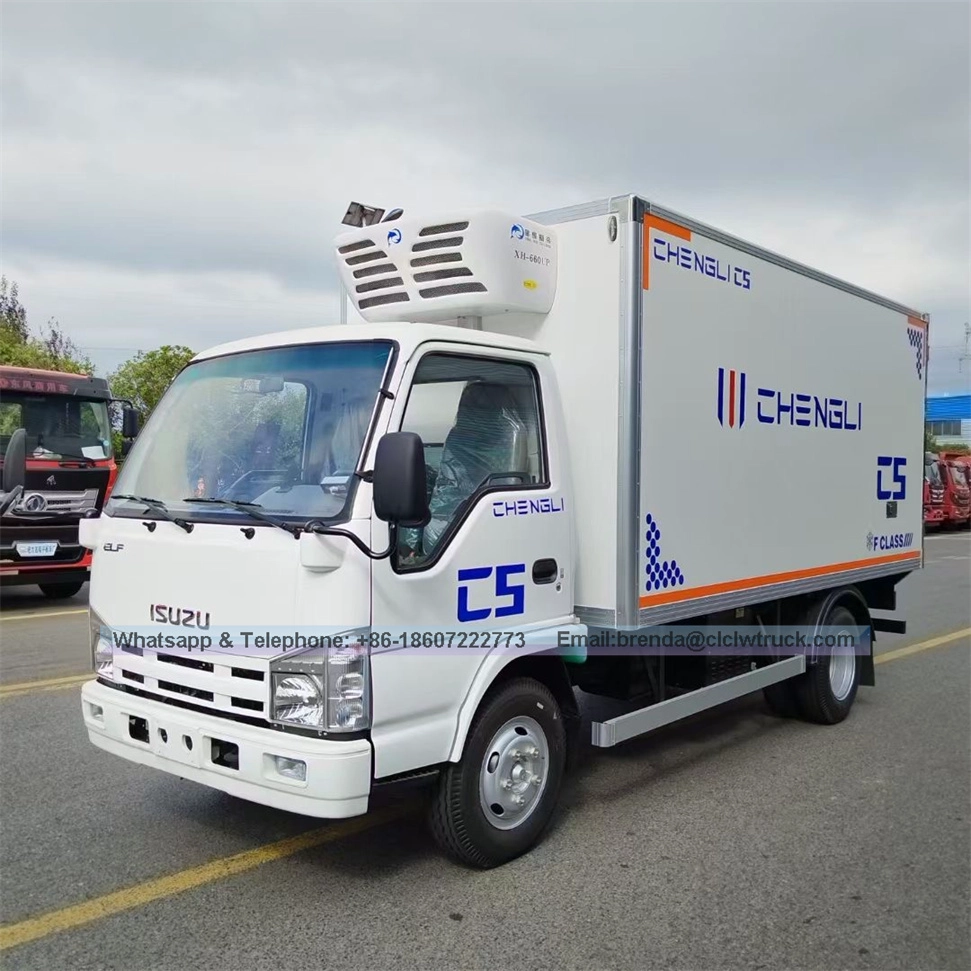

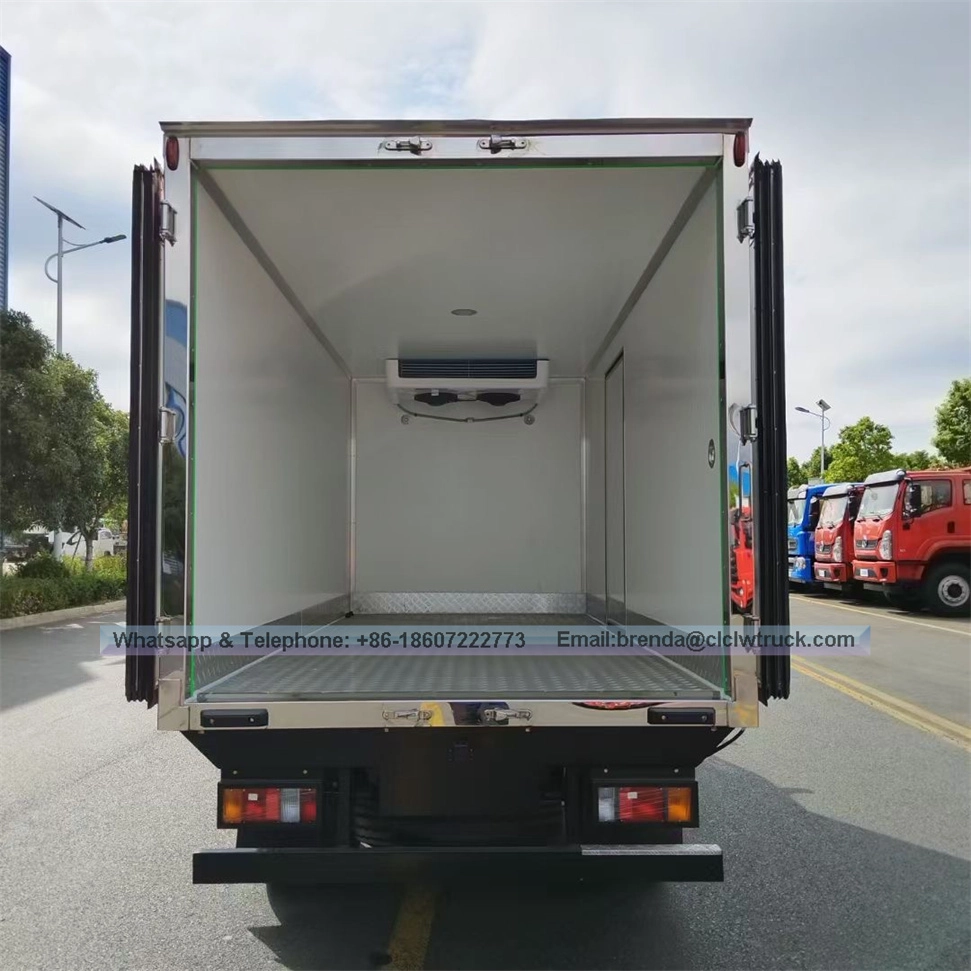

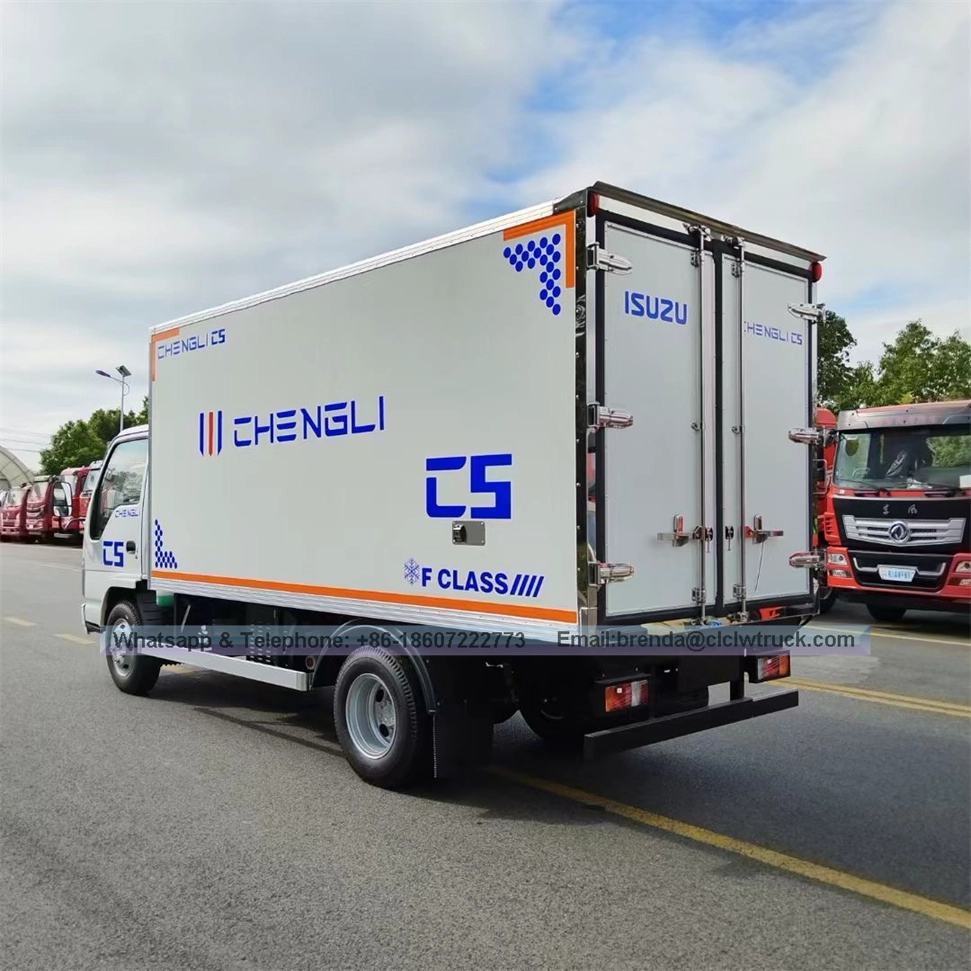

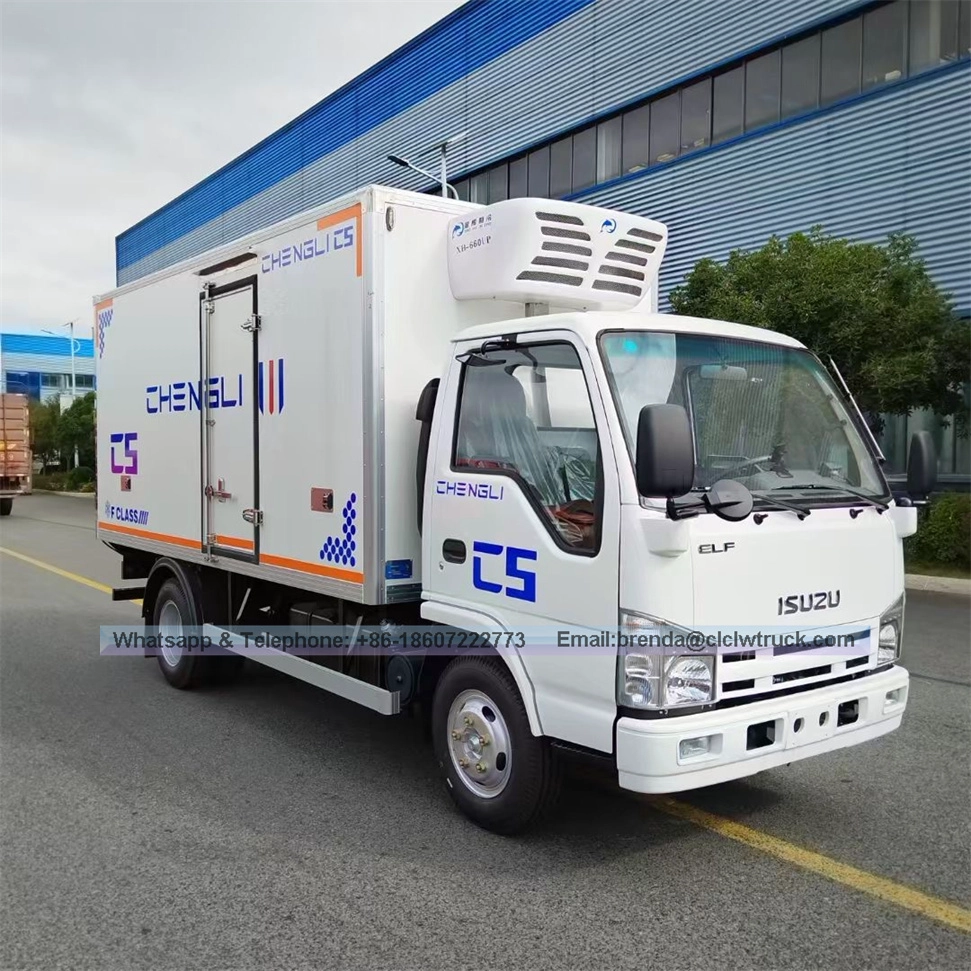

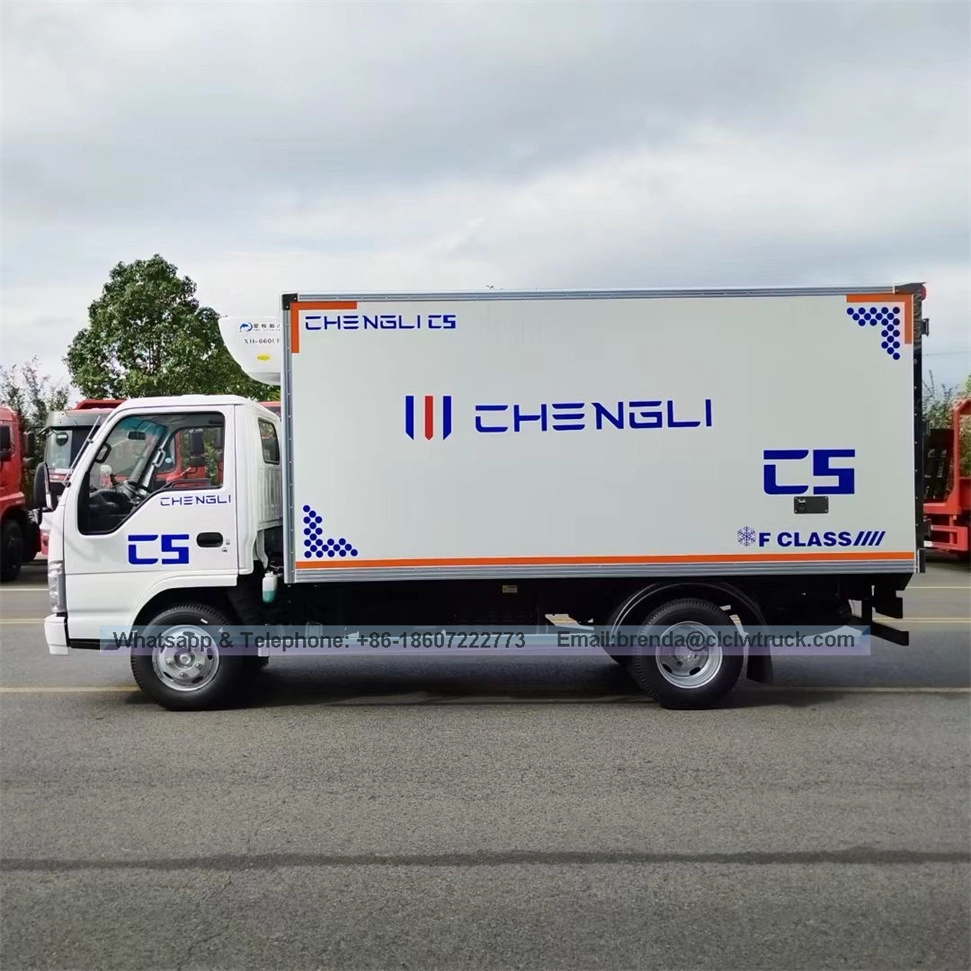

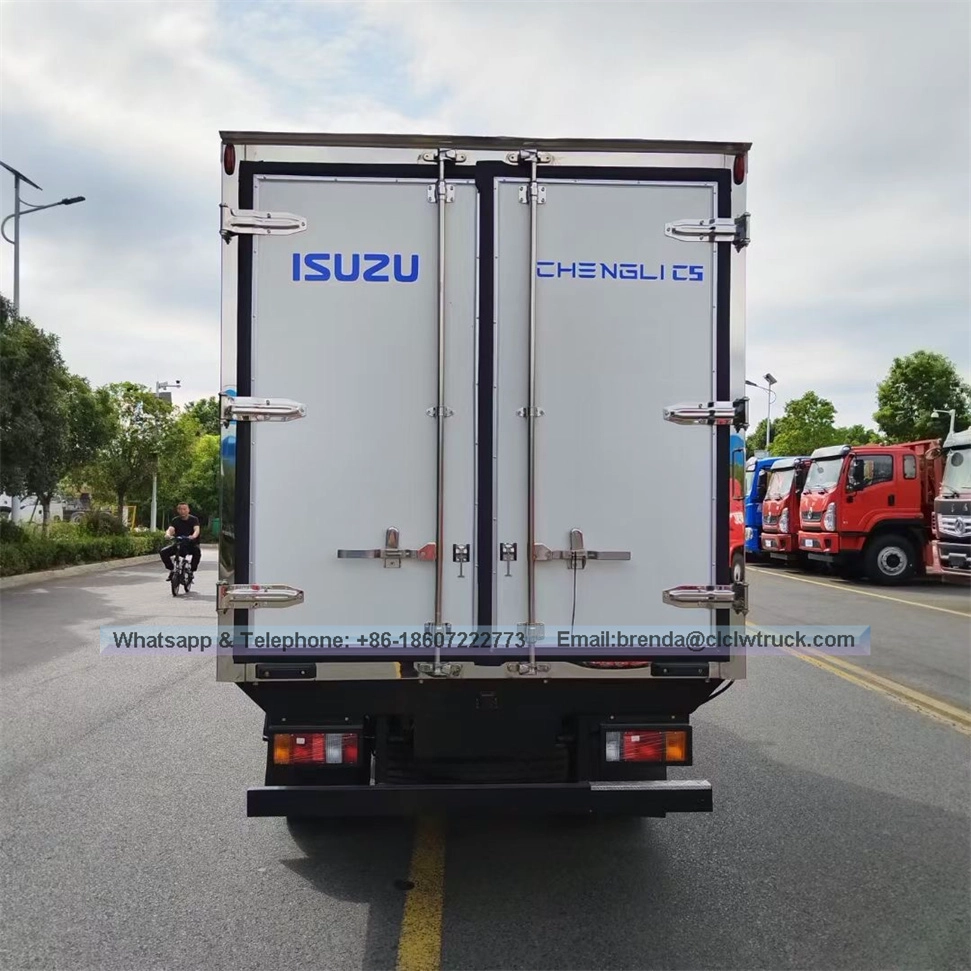

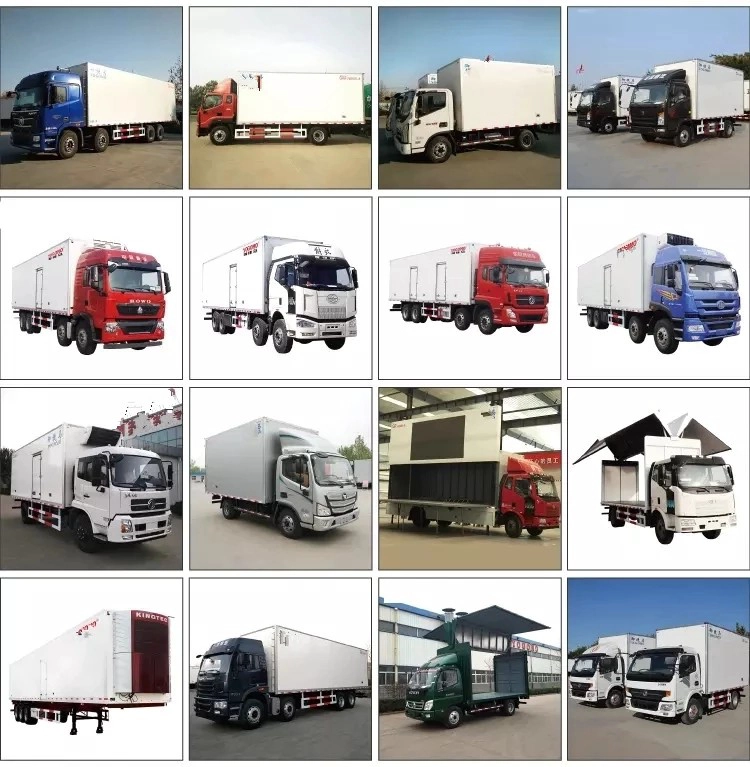

Refrigerator truck



image as below
