Home > Category > Product Categories > Fire fighting truck  > Dongfeng fire truck 4000liter,fire truck supplier,fire truck manufacturer china
Dongfeng fire truck 4000liter,fire truck supplier,fire truck manufacturer chinaDongfeng fire truck 4000liter,fire truck supplier,fire truck manufacturer chinaDongfeng fire truck 4000liter,fire truck supplier,fire truck manufacturer chinaDongfeng fire truck 4000liter,fire truck supplier,fire truck manufacturer chinaDongfeng fire truck 4000liter,fire truck supplier,fire truck manufacturer china

Dongfeng fire truck 4000liter,fire truck supplier,fire truck manufacturer china

  • 1.Wheelbase(mm):3950
  • 2.Tyre specification:9.00-20
  • 3.Transmission:5 forward gear,1 reverse gear
  • 4.Water tank volume(L):4000
  • 5.Fire monitor flow rate:30L/S
  • 6.Fire pump flow rate:30L/S
  • 7.Pressure:1.0MPa
  • 8.Horsepower(HP):160

Main specification

Product model and name

4000L Water tank fire fighting truck

Gross weight(Kg)

7450

Drive type

4X2

Payload(Kg)

2000

Overall dimension(mm)

6850X2285X2930

Curb weight(Kg)

5000

Cab seats

6

Approach/departure angle(°)

20/13

Front/rear hang(mm)

1180/1815

Axle No.

2

Wheelbase(mm)

3950

Axle load(Kg)

3050/4400

Max speed(Km/h)

90

Chassis specification

Chassis model

EQ1108KJ

Manufacturer

Dongfeng Motor Co.,Ltd

Brand name

Dongfeng

Tyre No.

6

Tyre specification

9.00-20

Transmission

5 forward gear,1 reverse gear

Emission standard

Euro 3





Cab

Four opening doors and whole flat top with crew cab. And all steel frame welded structure with optional air condition.

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

Horsepower(HP)

YC4E160-33

Guangxi Yuchai Machinery Co.,Ltd

4260

118

160

Water tank fire fighting truck performance

Water tank volume(L)

4000

Fire monitor

Fire monitor model PS30, level rotation by 360º,

Max elevation +45º, Max angle of depression -15º,

Flow rate:30L/S,Range≥50 m/1.0MPa

Fire pump

Model: CB10/30  Flow rate:30L/S    Pressure:1.0MPa

Water tank fire truck Feature

A.The water tank fire fighting truck is mainly made up of the cab,water tank,water pump house, equipment boxes,water pump,and inlet and outlet water system, fire monitor, electronic alarm, alarm lamp etc.parts.

B.The entire distribution of truck is divided into three parts.The front part is passenger room.The middle part is pump house.The rear part is the truck body.The front part of car body is water tank,the rear part is equipment box.

C.It has the feature of high power,high speed and big carrying liquid capacity etc.It is adopted the extended cab.With seat comfortably and centralized operation, simple maintenance,

D.it is widely used in the public security fire brigade, the petroleum chemical industry, factories and mines enterprises and ports, terminals and other places to save the large of oil fire and general material fire in large and medium-sized cities.It is the ideal large fire-fighting equipment.

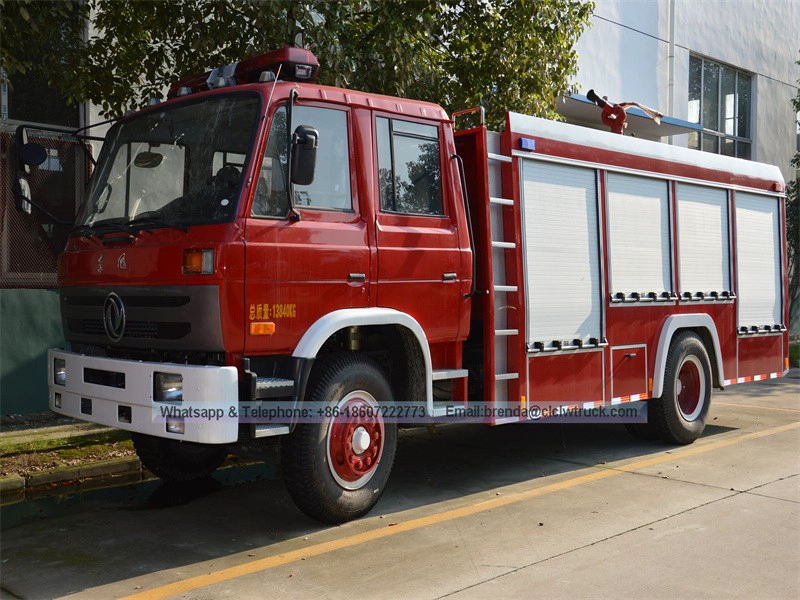

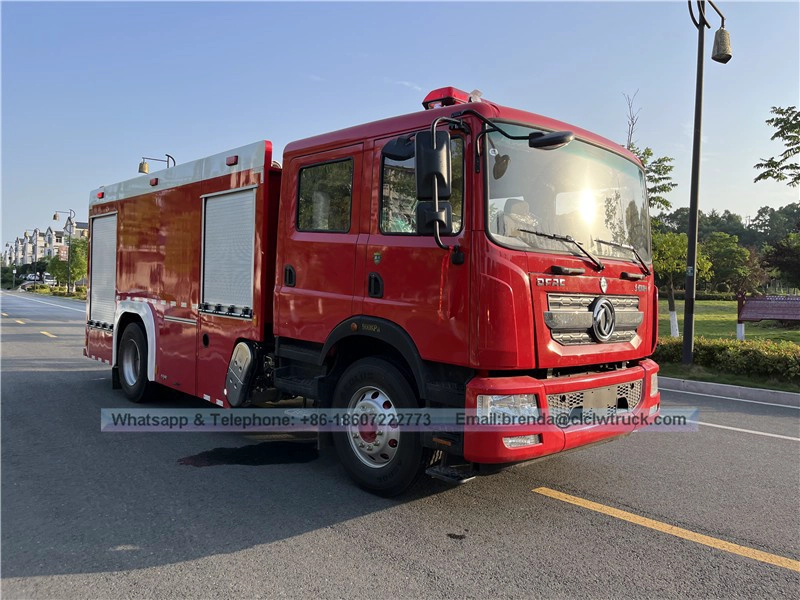

Dongfeng fire truck 4000liter image
