Main specification

Product model and name

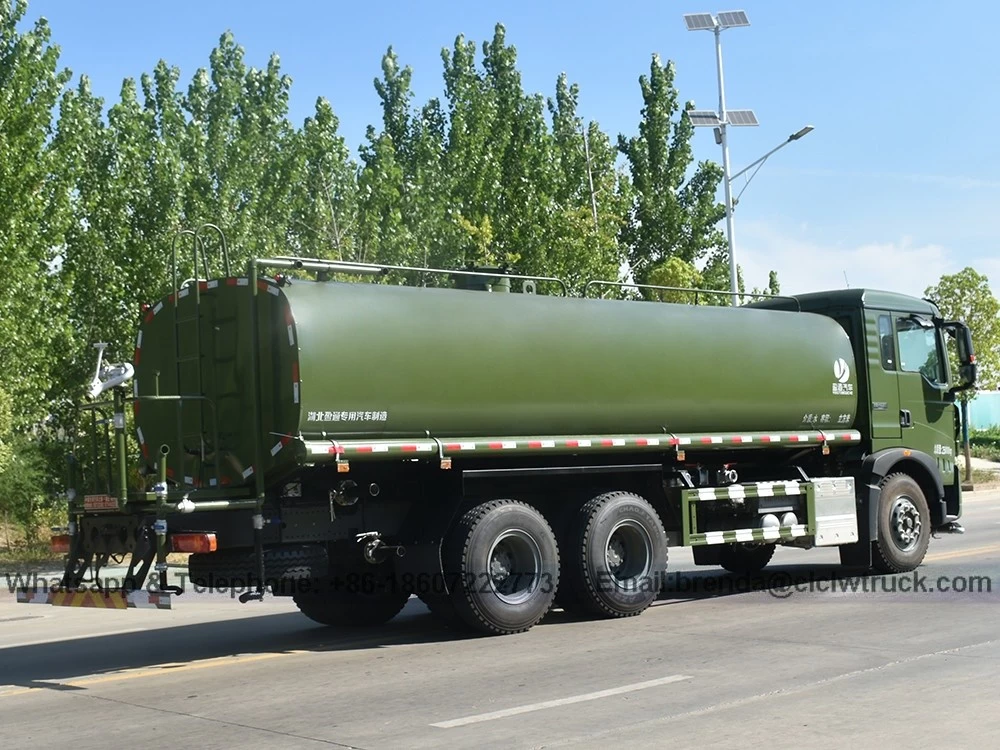

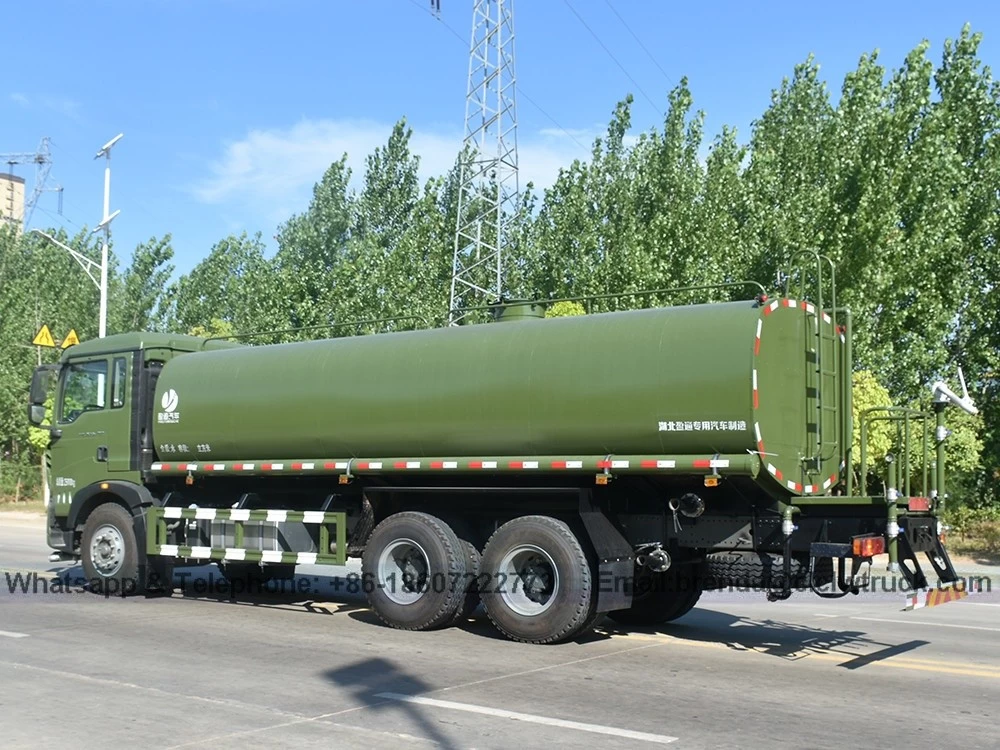

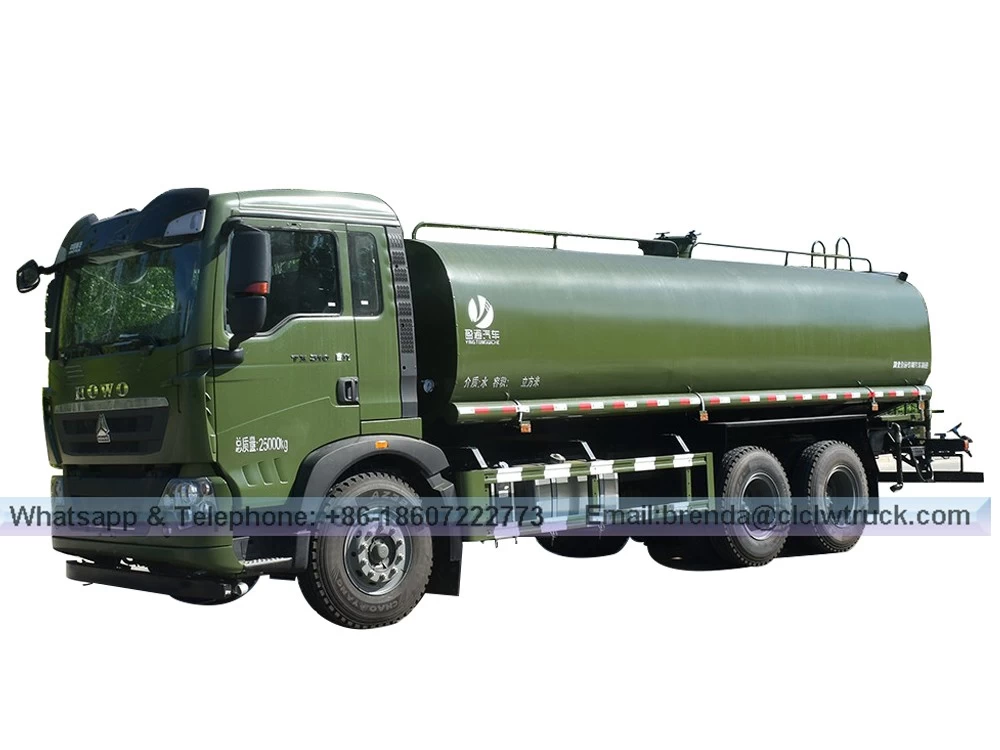

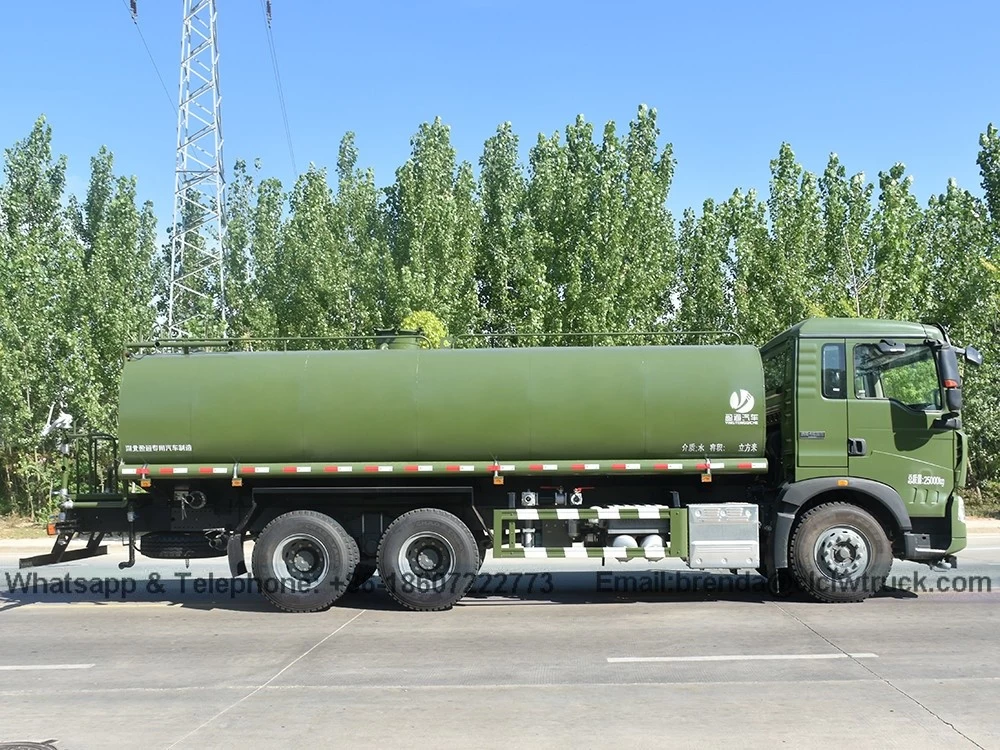

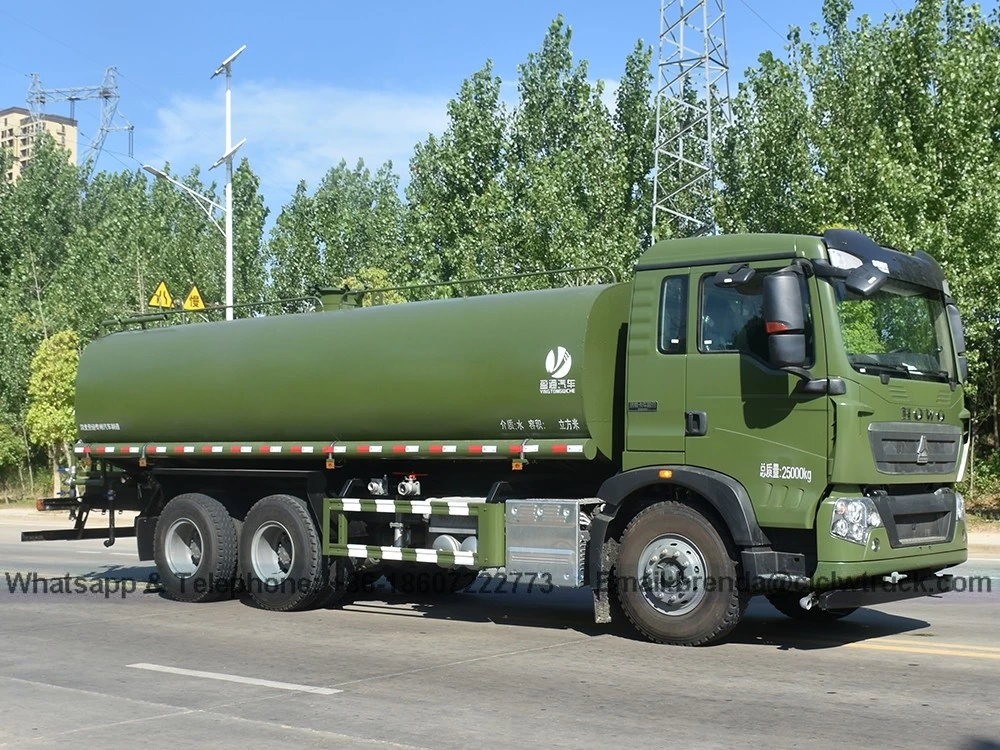

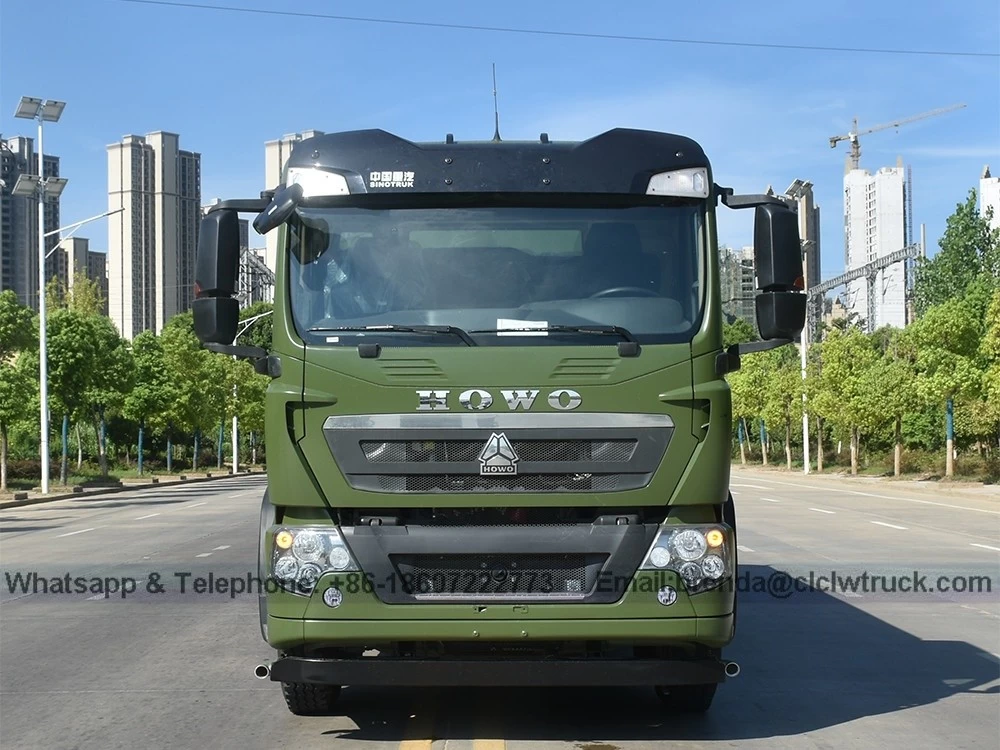

HOWO 20m3 sprinkler truck

Gross weight(Kg)

25000

Drive type

6*4

Payload(Kg)

14070

Overall dimension(mm)

9.85*2.5*3.2

Curb weight(Kg)

10800

Cab seats

2.3

Approach/departure angle(°)

19/13

Front/rear hang(mm)

1430/2770

Max speed(Km/h)

110

Wheelbase(mm)

4300+1530

Chassis specification

Chassis model

ZZ1257N464GF1

Manufacturer

Howo

Brand name

Sinotruk Jinan Truck Co., Ltd.

Fuel type

diesel fuel

Tyre specification

315/80R22.5

Tyre No.

10

Rear track base(mm)

1830/1830

Front track base(mm)

2015

Emission standard

VI

Transmission

/

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

H07H.33-60

Zhong qi

7360

325

Performance

Tank volume(m³)

15

Tank material

Carbon steel Q235

Water pump model

60-90

Water pump flow(m³/h)

/

Watering width(M)

≥16

Water cannon range (M)

30

Feature and Application

1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.

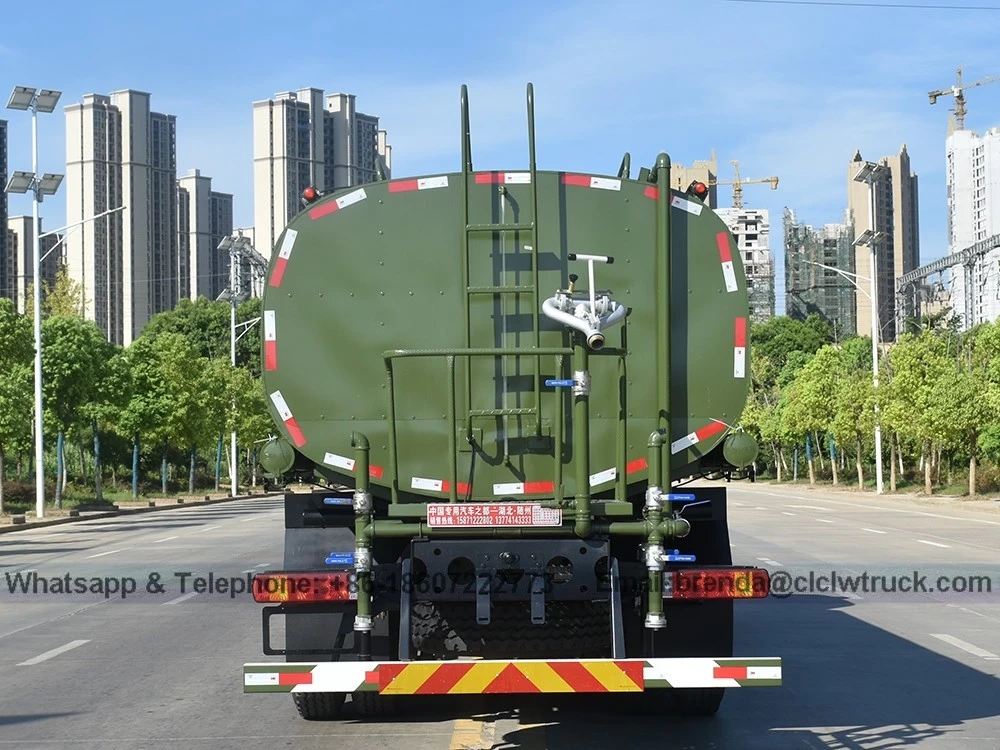

2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.

3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M.

4).Equipped with fire coupling, flow valves, filter screen and water level gauge.

5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped.

6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.
